Heavy-Duty Adjustable Connecting Leveller | HD S1095

$999.00

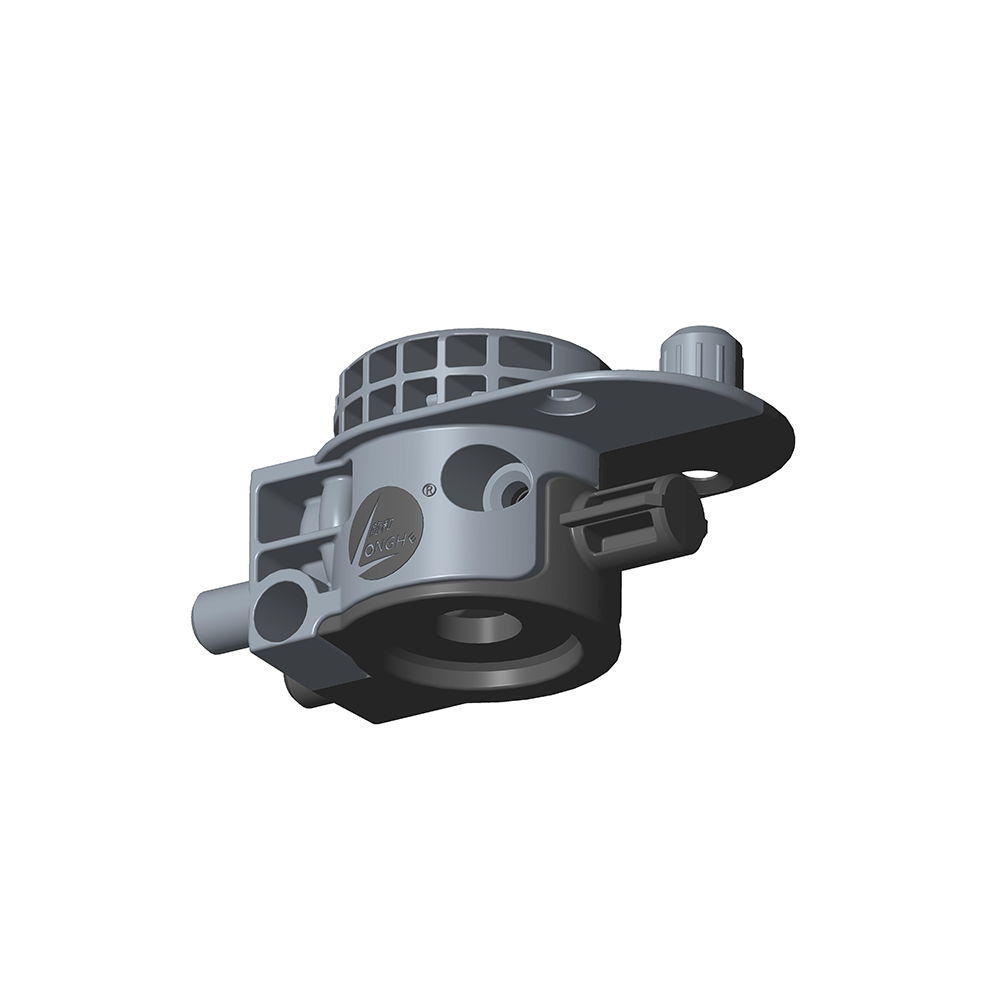

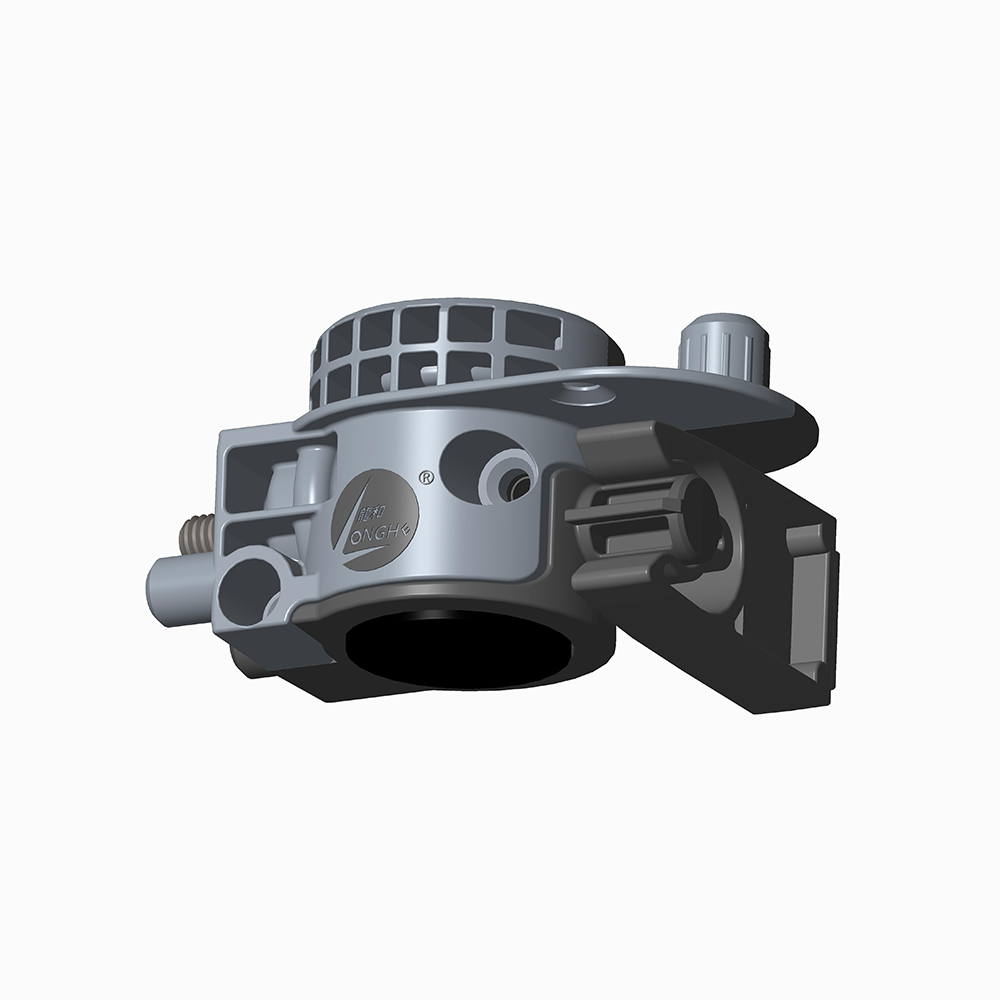

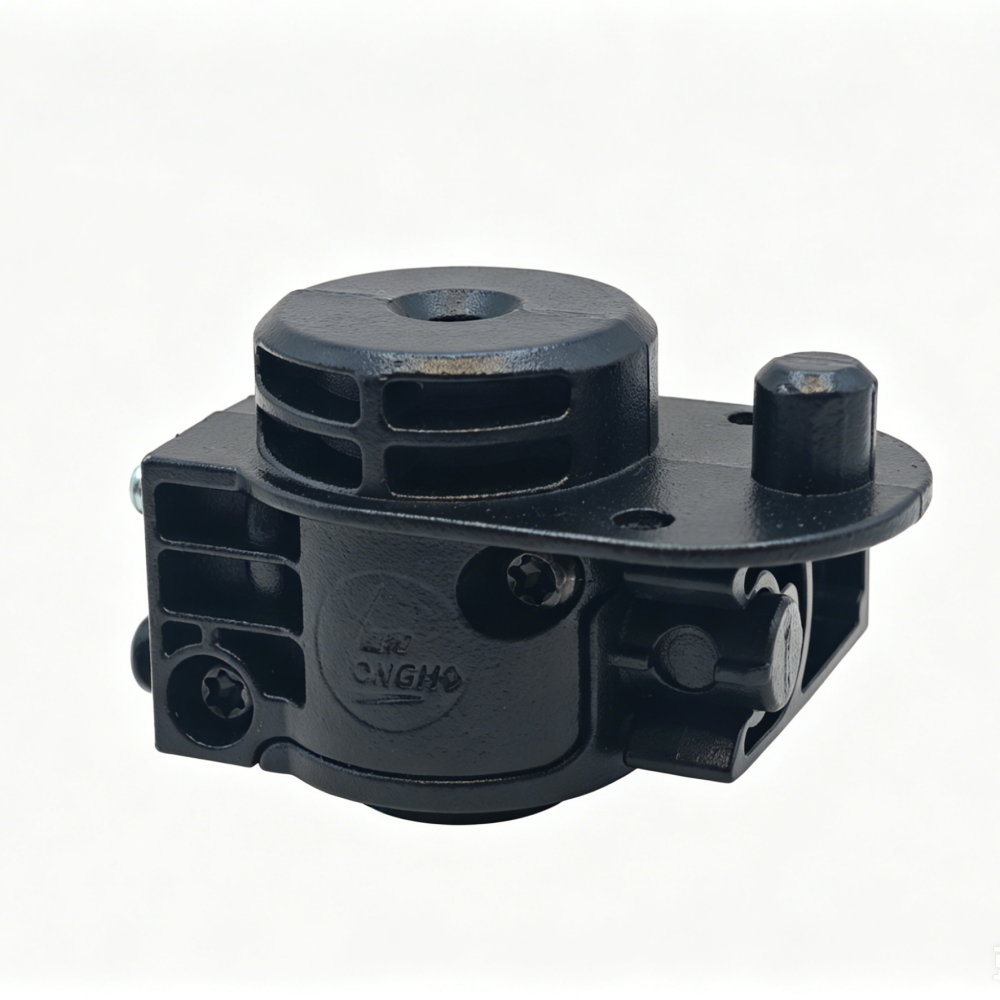

Heavy-Duty Adjustable Connecting Leveller | HD S1095

1. 500kg Load Capacity with Reinforced Metal Frame

Engineered from high-grade metal substrate, this H20 Adjustable Connecting Leveller delivers verified 500kg load rating per unit. The rigid structural design ensures zero deflection under rated capacity, meeting commercial kitchen and heavy-storage cabinet requirements.

2. Ball-Bearing Base for Load-Independent Adjustment

Equipped with precision steel ball-bearing interface at the base plate, the height adjustment mechanism operates smoothly even under full load. Unlike conventional designs that seize under pressure, this system maintains 360° rotation capability at maximum rated weight.

3. H20 Specification for Standard 32mm Cabinet Systems

Designed to System 32 standards with 20mm adjustment range, compatible with standard plinth heights and toe-kick configurations. The compact vertical profile integrates seamlessly into 32mm hole-line cabinet construction without additional clearance requirements.

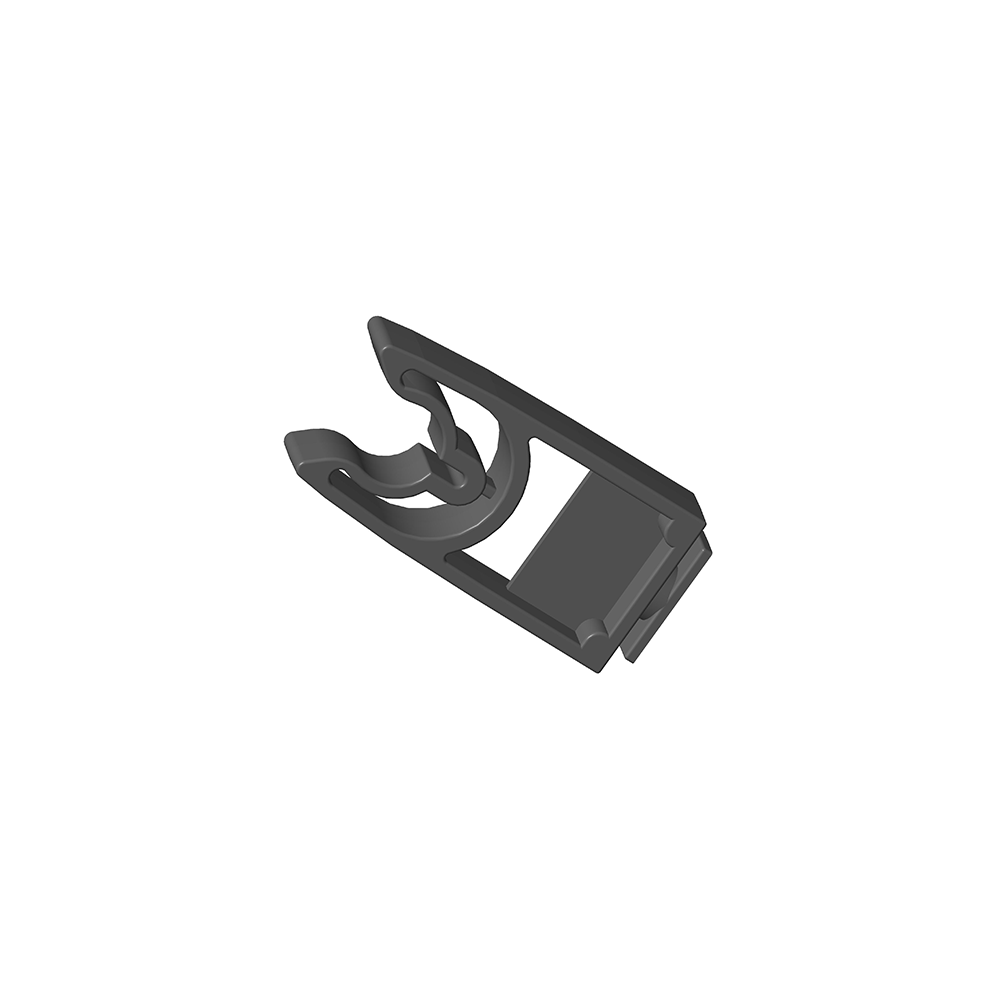

4. Integrated Kick-Plate Bracket Included

Supplied with dedicated kick-plate mounting bracket as standard accessory, eliminating separate procurement. The bracket interfaces directly with the leveller body, enabling secure toe-kick installation without secondary fastening hardware.

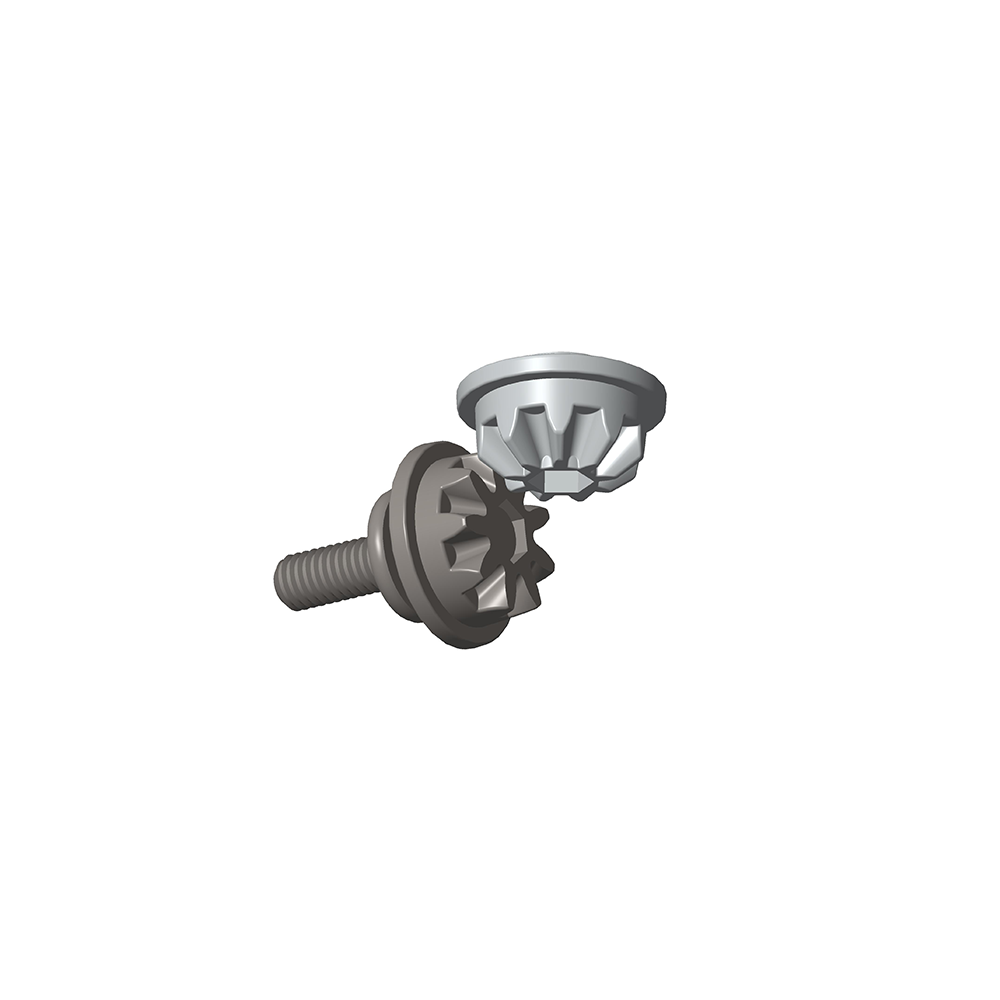

5. Direct-Drive Design Eliminates Linkage Rods

Proprietary direct-drive transmission mechanism replaces traditional connecting rod assemblies, reducing installation steps by 40%. The simplified mechanical path improves reliability and eliminates rod-alignment tolerance issues common in multi-piece leveling systems.

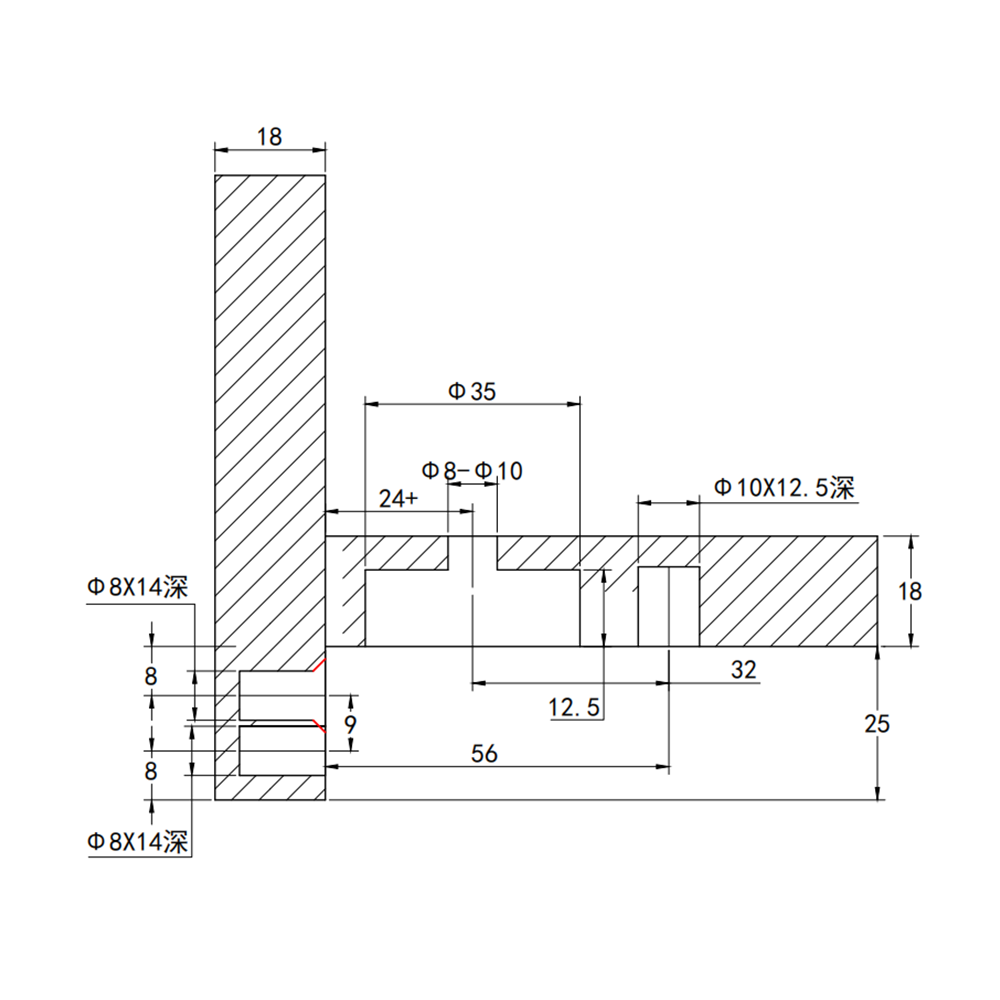

Shelf drilling data

Side panel drilling data

Request a quote

About MOQ: Since various product specifications—such as length, coating, and head type—are customizable, our pricing is calculated based on the order quantity. For inquiries, please contact our 24-hour online customer service team.

Contact us for customized solutions.

We accept both T/T and L/C payment terms.If you have any inquiries or require custom non-standard furniture screws, feel free to contact us anytime — our team will be glad to assist.
